Whereas some Web viewers for pano and spherical images require equirectangular projection, but Revit pano cloud rendering makes cube mapping, here is a way to convert those renderings.

Make pano rendering from Revit

How to…

Download your rendering(s)…

Extract <image.png> from the .zip

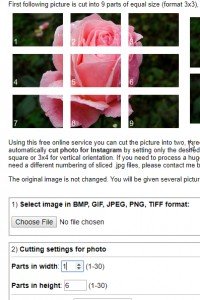

Cut the image into six pieces

One way to do it is to use https://www.imgonline.com.ua/eng/cut-photo-into-pieces.php

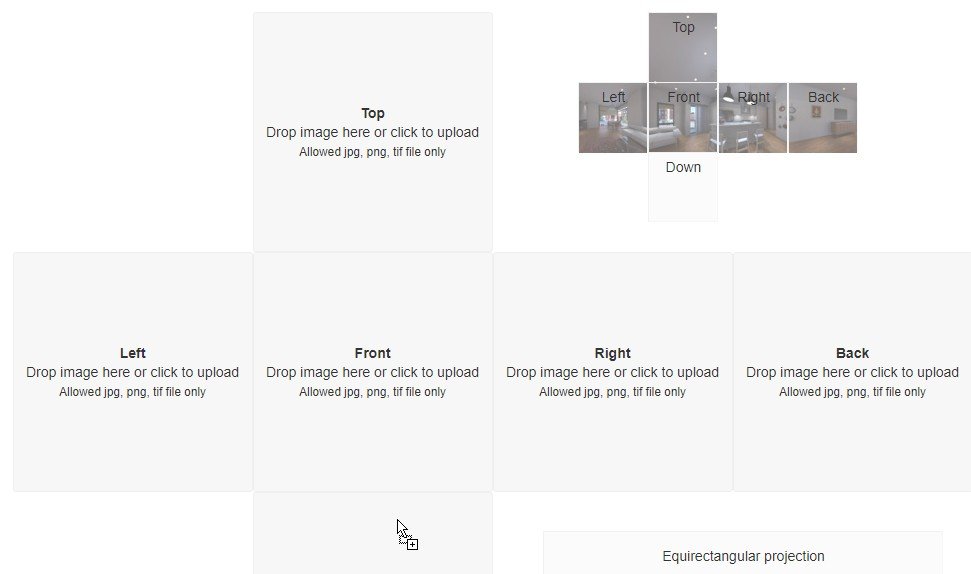

Make equirectangular projection from the six images

Use https://nadirpatch.com/cube2sphere/

Drag-and-drop the six image files into the squares on the page thusly:

  1. Top = image_part_003.png
  2. Left = image_part_002.png
  3. Front = image_part_006.png
  4. Right = image_part_001.png
  5. Back = image_part_005.png
  6. Down = image_part_004.png

This took a while to figure out which image goes where…

Download the resulting TIF image and convert to JPG or PNG. Many ways to do that — I recommend FastStone Image Viewer. Lighting and other values can also be adjusted.

The resultant image may be used in on sites such as roundme.com.

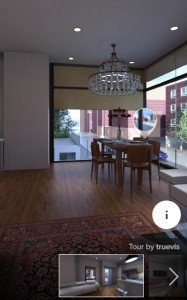

Usage Example



Autodesk, as of February 2018, has added an Equirectangular download option to their rendering gallery, thus making the methods  described in this post unnecessary.
